American Made - Range Ready!
How Did Wellstronics3D Help?
ShootSteel designs, develops, and manufactures world-class shooting targets, backed by months of rigorous range testing. Wellstronics3D has partnered with ShootSteel for years, providing expert design and development for their product line. We utilize Solidworks to create precise .DXF, .PDF, and .STP files, ensuring seamless handoffs to manufacturers.

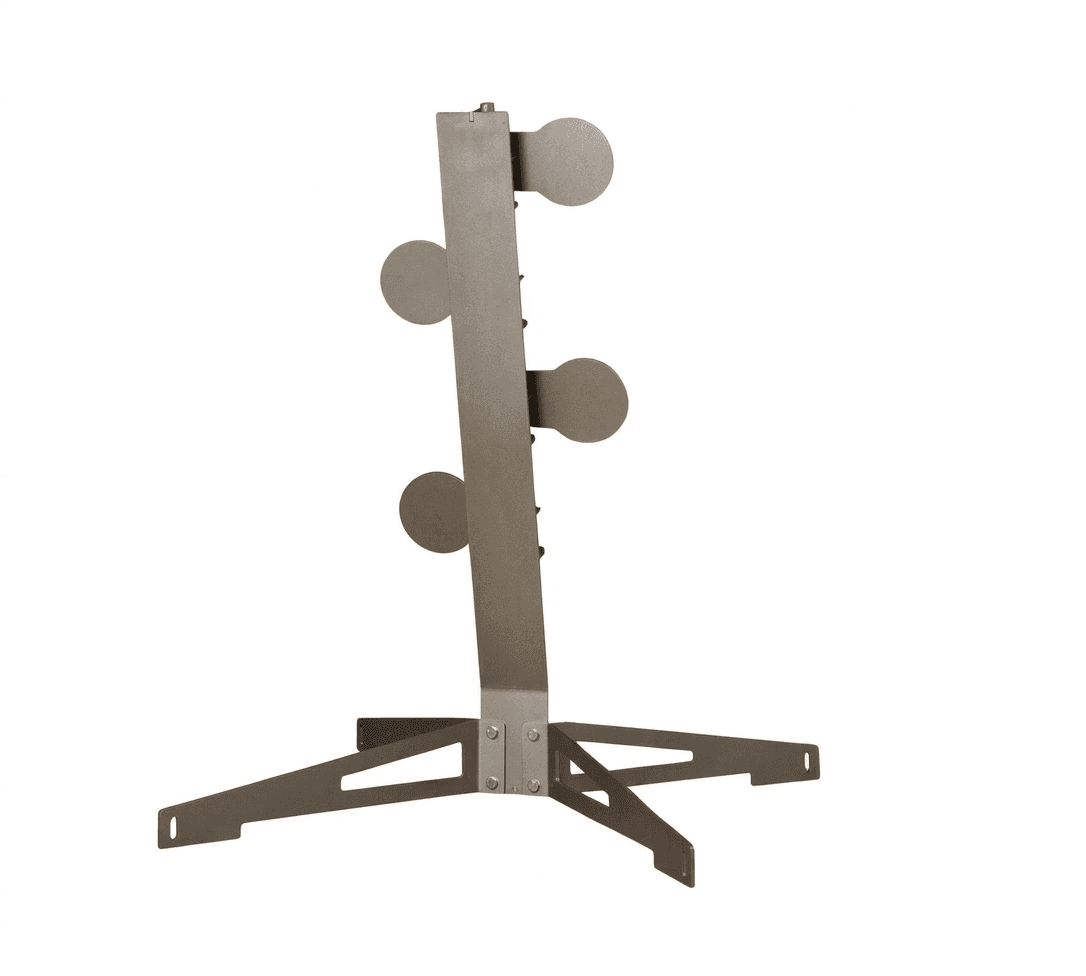

Our expertise extends to material-specific design; targets like the Dueling Tree and Texas Star are engineered for AR500 steel and optimized for industrial laser cutting. By prioritizing laser cutting nesting efficiency on standard 6'x12' sheets, we maximize material yield and reduce the cost per part. Furthermore, we integrate specialized cuts and mounting processes to minimize hardware and streamline the welding process.

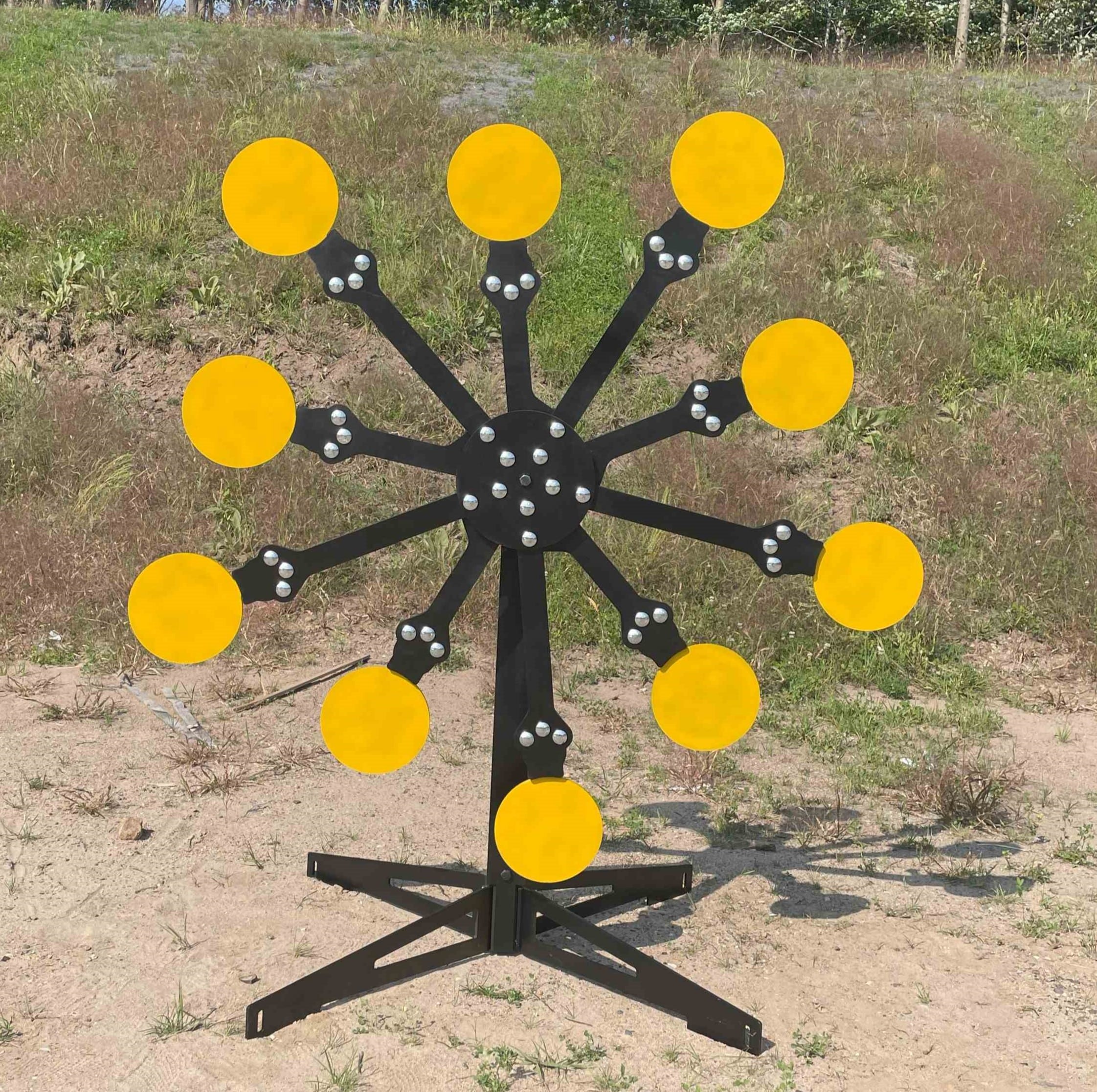

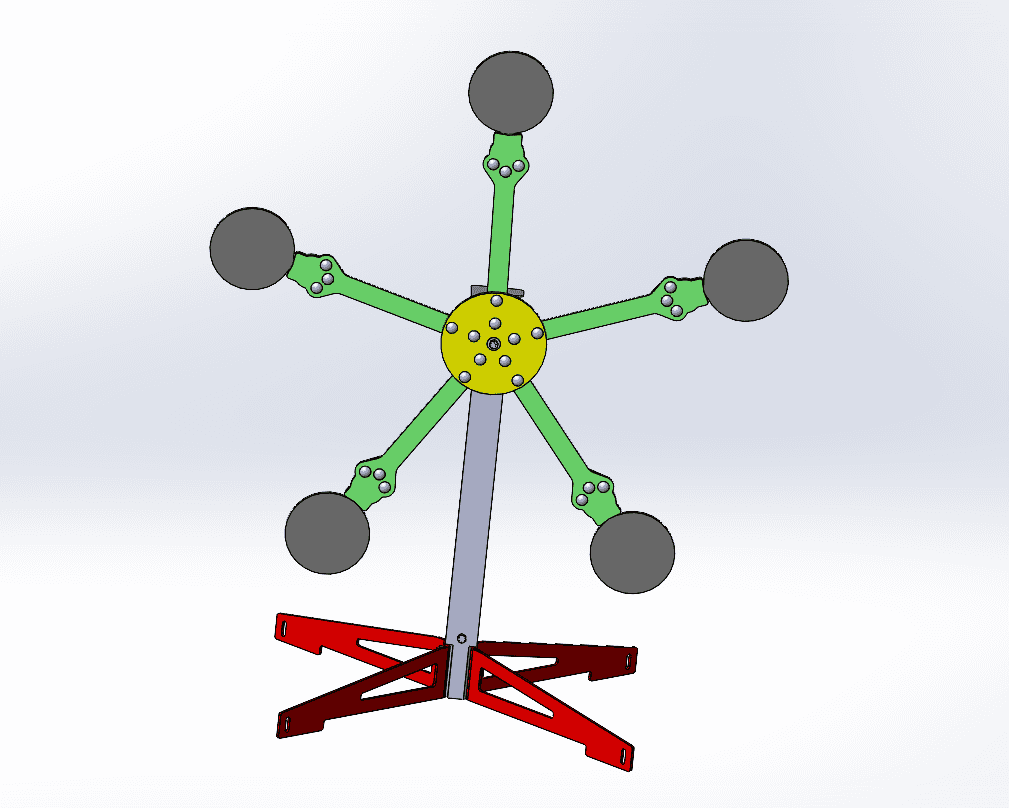

Texas Star Project Details
Specialized DFM (Design for Manufacturing) Services
Fully designed for Laser Cutting

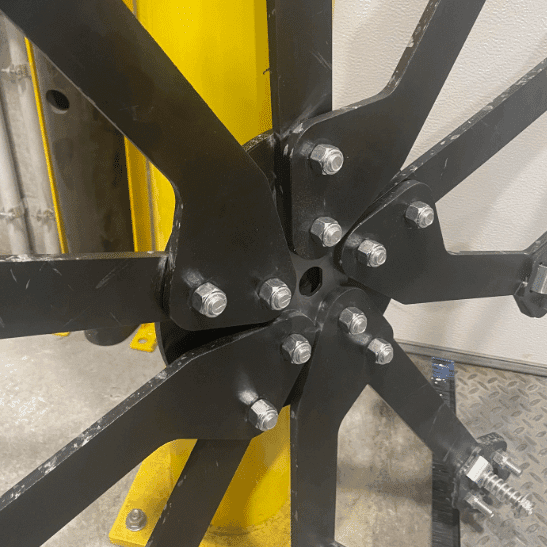

Tab and Slot Design to Reduce Welding
Advanced nesting optimization to maximize material yield and reduce scrap.
.STP, .PDF and .DXF Files made for manufacturing
Fully detailed Assembly Instructions
https://shootsteel.com/
FAQs
How does laser cutting nesting optimization reduce production costs?
Nesting optimization is the process of strategically arranging parts on a standard 6'x12' steel sheet to maximize material yield. At Wellstronics3D, we prioritize nesting efficiency to minimize scrap metal, allowing us to reduce the cost per part significantly while maximizing your raw material investment.
What are the benefits of using Tab and Slot design for metal fabrication?
Tab and Slot design allows metal components to self-fixture during assembly. This precision engineering technique significantly reduces the need for expensive welding jigs, lowers labor costs, and ensures that complex structures—like the Texas Star shooting target—are perfectly aligned before the first weld is even made.
Can you provide manufacturing-ready files for sheet metal and other metal fabricted products or tools?
Yes. We specialize in creating precise .DXF, .PDF, and .STP files specifically optimized for industrial laser cutting. Our designs work seamlessly with all types of manufacturing, ensuring that the final design works perfect the first time.
Do you provide assembly instructions for complex products?
Absolutely. For intricate assemblies like the Dueling Tree or Texas Star, we provide fully detailed assembly instructions. This ensures a seamless handoff to manufacturers or end-users, reducing assembly errors and ensuring the product functions safely and effectively right out of the box.
